EWD-H-GSV10 Induction Elevator Load Weighing Device Manual V2.2
Sensor output from far to near for the need 0 ~ 12.5mm / 10 ~ 0V signal acquisition;
Sensor output from near to far for the need 0 ~ 12.5mm / 0 ~ 10V signal acquisition;
The above two methods of work, the user must specify the order when ordering!
Attention:Induction magnet is match this product special rare earth magnets,
magnetic strength, the installation process must be careful;At all times to avoid the
magnet is close to the high temperature of 100 ℃ above, lest demagnetization;The
resulting loss of personal and equipment shall not be responsible for the company.
Main feature:
1. Non-contact inductive way of working itself without mechanical movement;
2. Using Highly robust induction magnet, the maximum enhance system
anti-jamming capability;
3. Electrical performance accords with the international electrotechnical commission
(IEC) standards；
4. With functions of zero position and work instructions, small volume, convenient
installation and debugging.Simple structure, low cost.
Technical indicators：
1
Application Range
1.Sensor output from far to near the detetion of 0 ~ 12.5mm suitable for 10 ~ 0V.
2.Sensor output from far to near the detetion of 0 ~ 12.5mm suitable for 0 ~10V.
2
Sensitivity
≤1% (Electrical indicators) ±1.0
3
System Error
≤5％(5～40℃)
4
Output form
Brown line
Blue line
Black line
5
Working
environment
temperature
-20～55℃
6
Power Supply
DC 24V，The whole machine working current ≤35mA
7
Overall Dimensions
Φ24×56 cylinder
Installation method：
EWD-H-GSV10 Induction type elevator weighing device technology file [manual]
Xi’an excellent electromechanical co.,ltd
http://www.xaest.com
：
(029)88416613、85565714、85568478
7D,Block A,Olympic Building,8th Chang An
North Road,Xi’an Shaanxi, China.
：710061

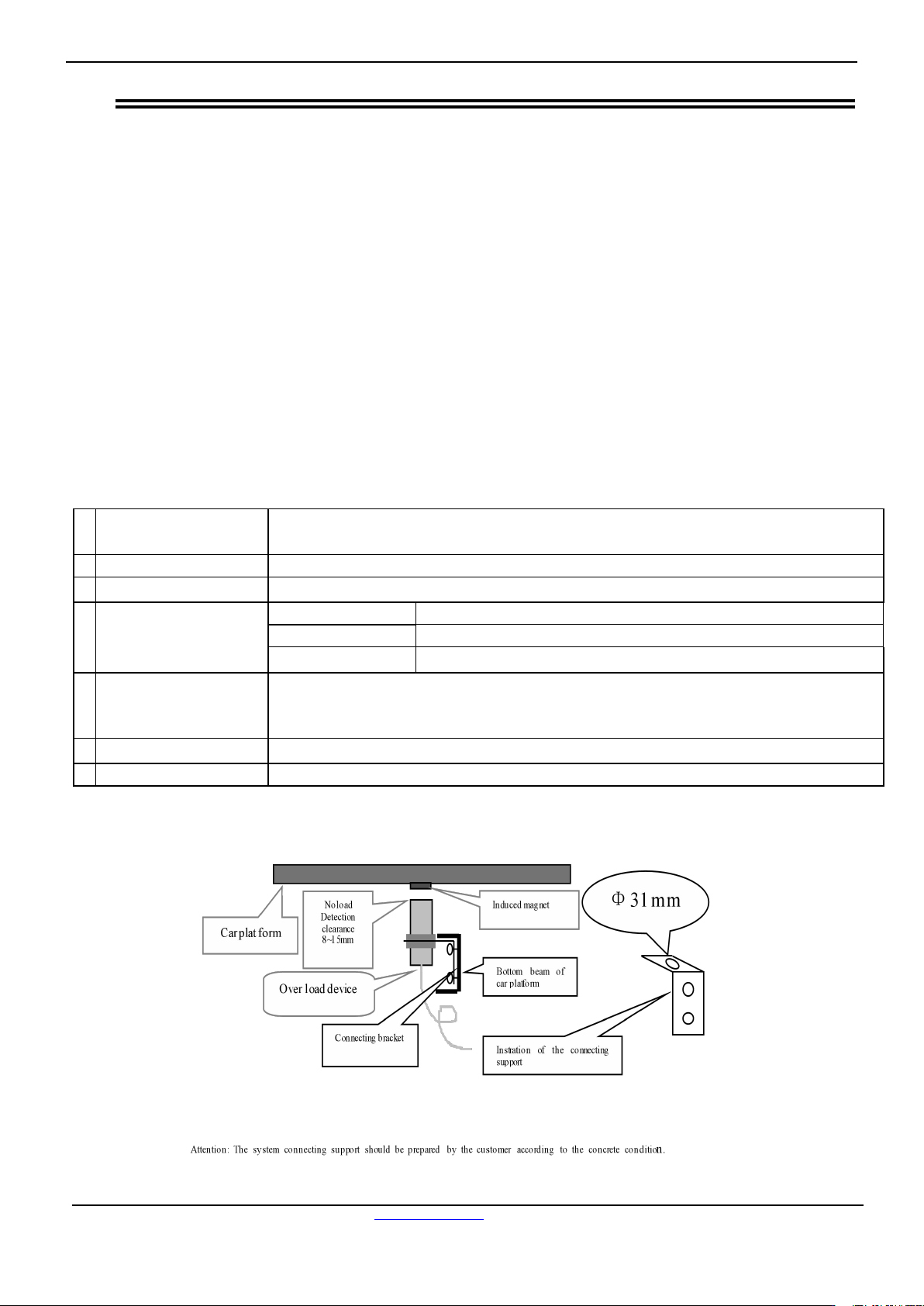

1、Please refer to the above figure to install this device with the connecting supp
ort (made by the customer himself) close to the middle part of the car platform as
near as possible..
2、Let the magnet adhesive on the car platform with the marking-face right facing
the induction point of the device.
3、Install and adjust this device so that the magnet on the car platform aims at t
he center point of its upper face. Meanwhile, assure the end face of this device in
parallel with that of the magnet.
4、Electric transmission system,during the period of no load,adjust the up and dow
n this device to make the indicator just turn from red to green,then fasten this devi
ce and the adjustment is finished.
System wiring principle：
Attention : Output wire of this device must not be connected with external power supply to avoid
everlasting damage.The company is not responsible for the resulting damage.
others：Inductive magnet[20×20×4mm
3
] 1piece Fastening Nut 2 sets
1Brown
：
DC +24V
2Blue：Com
3black：0~10V
Alternating red and
green to determine
the origin of detection
