Technical File of the EWD-H-XJ4 Intelligent Elevator Load Weighing Device [Users Guide]
USER’S GUIDE
EWD-H-XJ4
(V2.2)
Xi'an Excellent Electromechanical Co., Ltd.
Technical File of the EWD-H-XJ4 Intelligent Elevator Load Weighing Device [Users Guide]
Page1 of 15
Table of Contents
Product Overview
1Product Appearance, inner structure and interface directions
…………
2Exterior dimensions and installing diagram
…………
Installation & Adjustment
3System Adjustment and directions
…………
Implication and Adjustment
Method of the Operation
Parameters
4System Parameters Adjustment
…………
5Explanation of the Meaning of Parameter P
…………
Indicating Code Explanation
6Explanation of System Normal Operation Code
…………
7Explanation of other displaying
…………
How To Do?
8Brief introductions of conditions
…………
9How to do setting adjustment of an elevator with the known “no load→rated
load”compressing deformation
…………
10How to repeat the Autotune operation for the system
…………
11How to modify the system output conditions after Autotune
…………
12How to use 20% rated load autotune?
…………
13Car shock rubber compression exceeds the sensor detection range
…………
14On the use of "load increase, away from" working methods of operation
…………
System Characteristics
15 Working principle of“EWD-H-XJ4”elevator weighing device
…………
16Main Properties
…………
17Technical Items
…………
Promise
…………
Others
…………
Attention: This system is applicable an elevator withmoveable car platform.Before use, please read the following content carefully.
The Inductive magnet is specially-made rare-earth magnet for this product with strong magnetic force. Special care should
be taken during installation. Under no condition should it be away from the high temperature above 100℃ to avoid
demagnetizing and the equipment damage and personal hurt from this is beyond our responsibility.
NoticeOur part is just responsible for the products quality in the guarantee period under any condition.
DeclarationOur company reserves the right of changing products for technical improvement and the related technical parameters
should be referred to the USER’S GUIDE along with the products.
Technical File of the EWD-H-XJ4 Intelligent Elevator Load Weighing Device [Users Guide]
Page 2 of 15
Product Overview

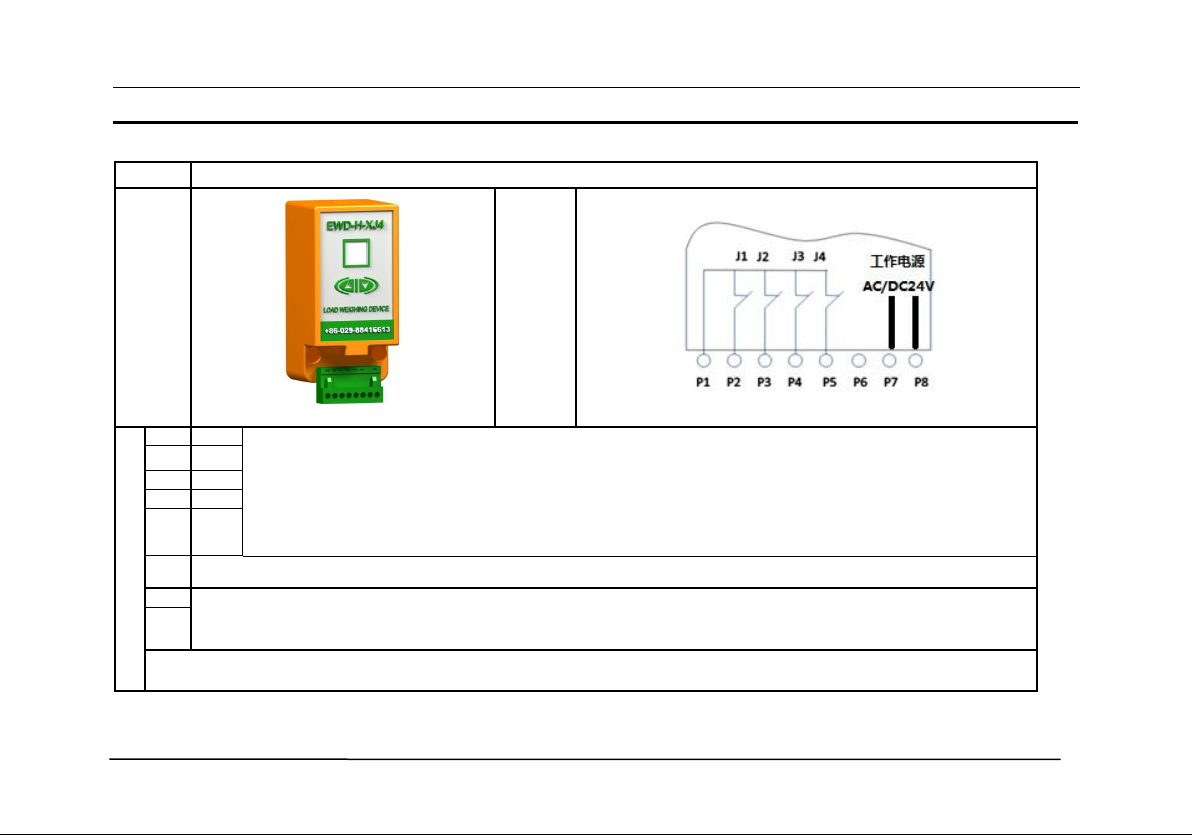

1 Product Appearance, Interior Structure and Interface Directions
EWD-H-XJ4
Appearance
Interior
Structure
Interface Directions
P1
Com
Common terminal
J1,J2,J3,j4 is 3 channel Solid State Relay Output
P2
J1
P3
J2
P4
J3
P5
J4
P6
None
P5
System Power Source
DC/AC24V(±10%)150mA
Absolutely not to connect the output terminals of this device except“P7 P8”to exterior power source directly, and the permanent
damage from this is beyond our responsibility.
P6
1. J1J3 are interior solid state relays with Max. loading capacity of DC/AC 32V/50mA
2. To be programmed as no loadover load”output signal to participate in elevator logic control.
Technical File of the EWD-H-XJ4 Intelligent Elevator Load Weighing Device [Users Guide]
Page3 of 15

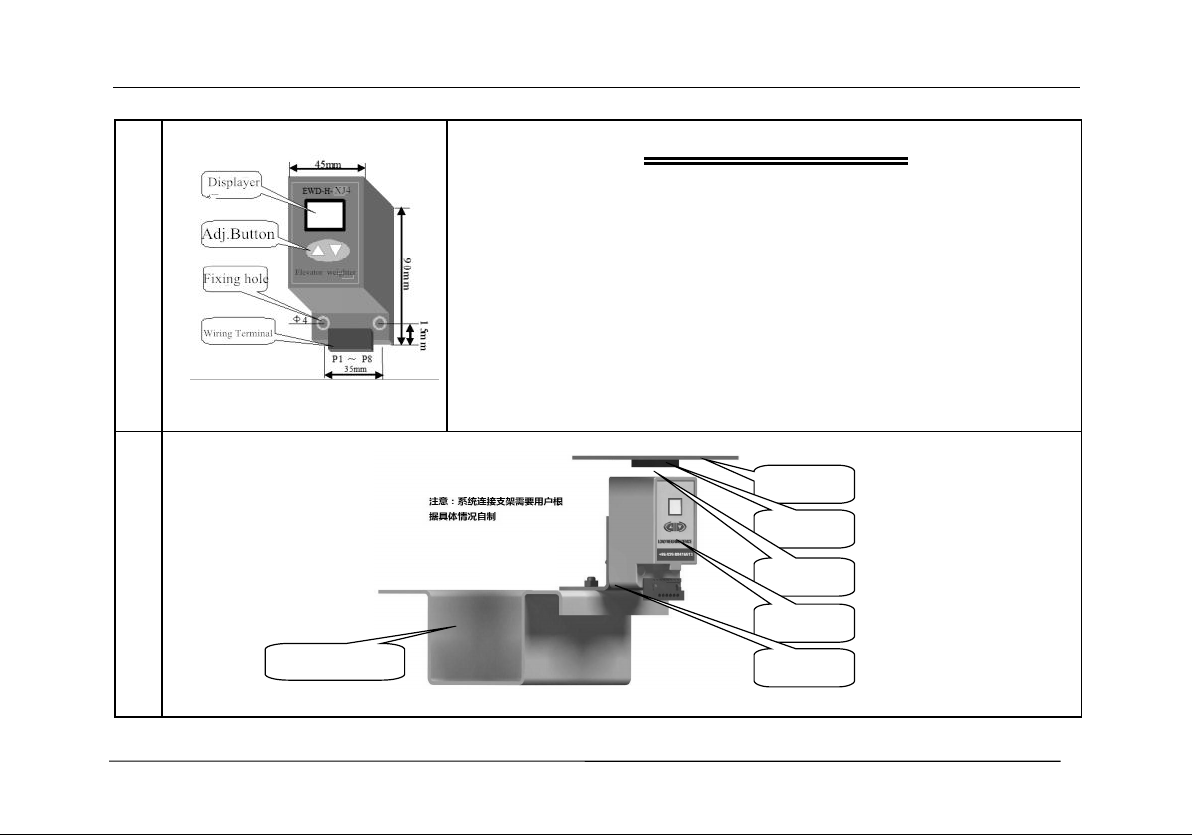

2、Exterior Dimensions & Installing Scheme
Exterior Dimension
Notice on Installation
1. Install this device as near as possible to the center of elevator car platform or the
original place of elevator overload switch. The system should be installed on the
bottom bearing beam of elevator car platform with the inductive magnet
adhering to the moveable car platform and the marking surface facing to the
inductive point of the weighing device.
2. The system supporting frame should be made according to elevator concrete
situation with the uneasily deforming material of thickness more than 4mm or
with enforcing plate to avoid swaying.
3. Adjust this device so that the car platform magnet aiming to the center point of its
upper section. Meanwhile, assure that the section of this device parallel to that of
the magnet.
Installing Method
电梯下承重
活动轿
感应磁
检测间
称重装
连接支
[3]
Technical File of the EWD-H-XJ4 Intelligent Elevator Load Weighing Device [Users Guide]
Page 4 of 15

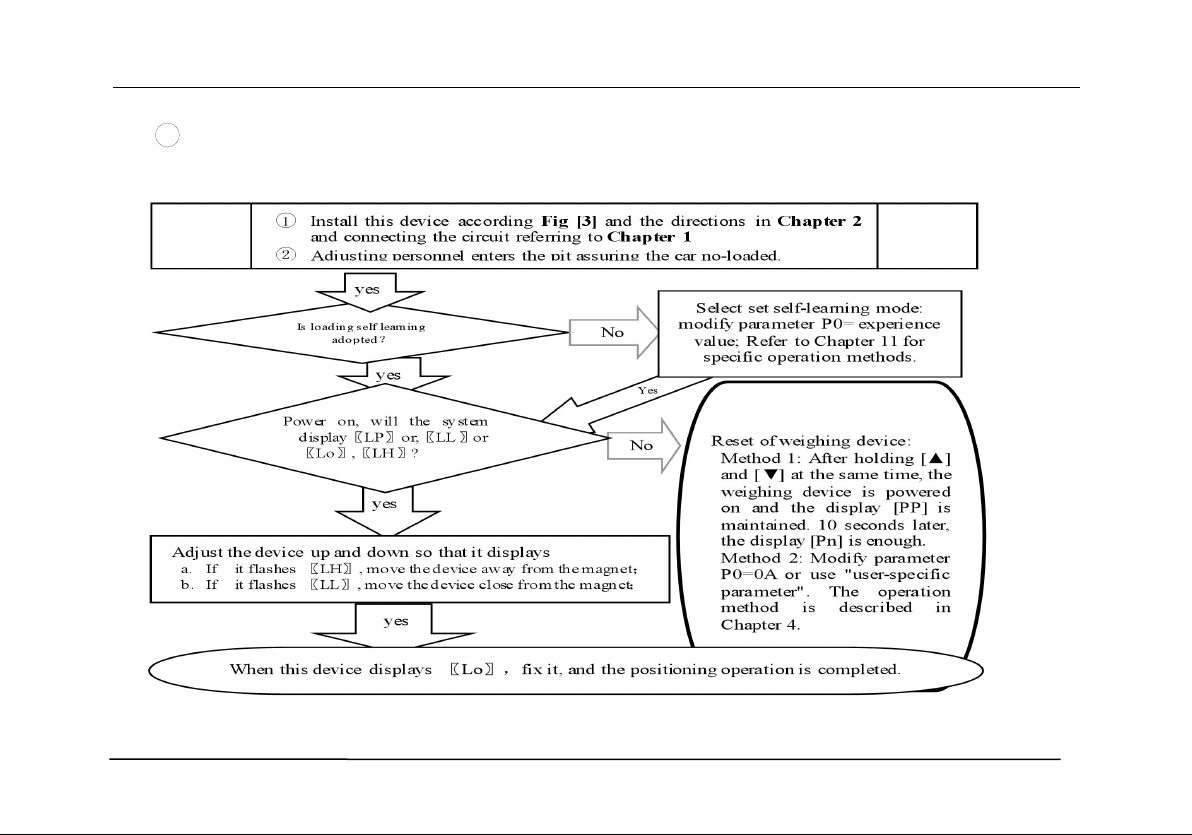

3、System Adjustment and Directions
1 System Positioning Operation
Technical File of the EWD-H-XJ4 Intelligent Elevator Load Weighing Device [Users Guide]
Page5 of 15

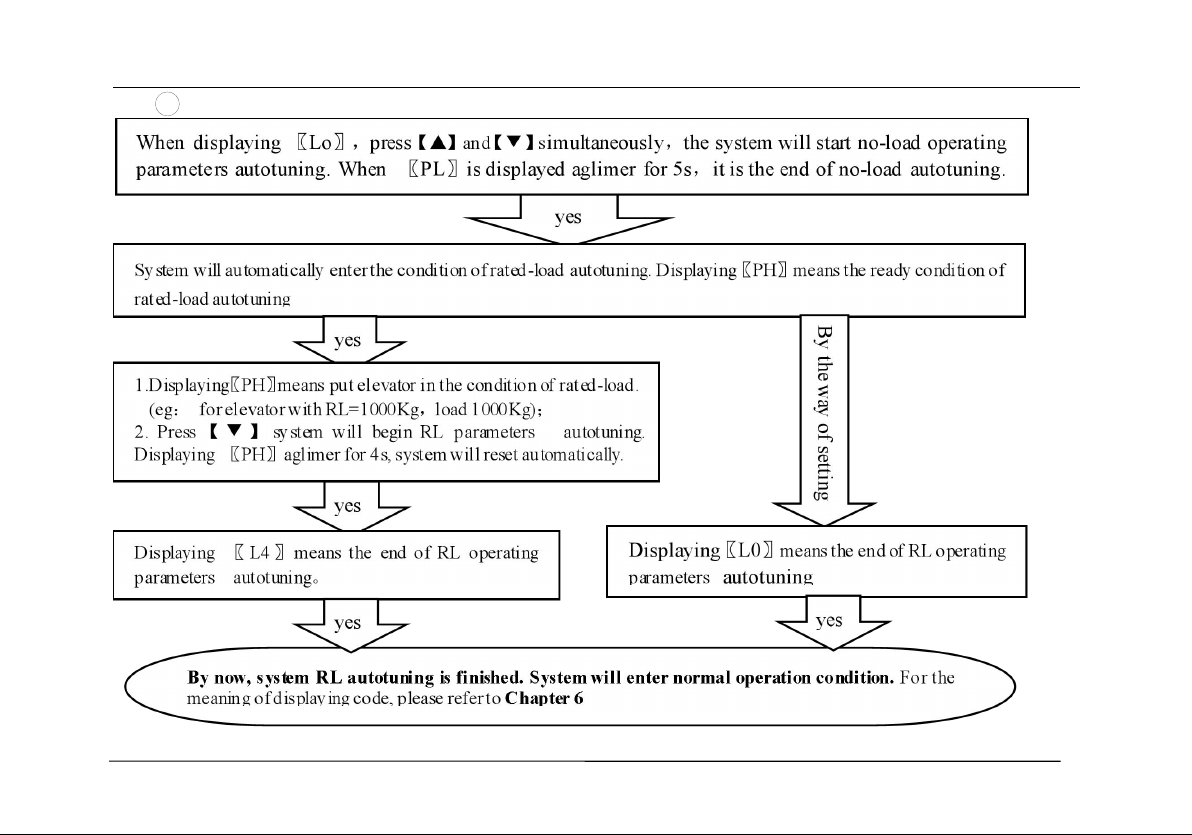

2 No load and Rated Load Operation Parameters for Autotuning
Technical File of the EWD-H-XJ4 Intelligent Elevator Load Weighing Device [Users Guide]
Page 6 of 15
3 System Adjustment under other conditions
For the following reason
it is necessary to modify the operating parameters of this device.
For elevator car decoration change
the dead weight of the moveable car platform changes
The car platform appears mechanical deformation
The temperature difference between winter and summer has an unneglecting effect on the elastic coefficient of car platform
damping rubber
The car platform appears damping rubber appears aging or deforming
The elevator overruns at the top or at the bottom
The weighing device becomes slack at the fixing end.
Operation Parameters Adjustment and the Implication
4
System Operation Parameters Adjustment (Annotation
* represents for a hexadecimal value
of “0
9,A
F”.)
Simultaneously press 【▲】and【▼】on system control keypad to power on this moment PP will be displayed aglimer,
that means entering operation parameters modifying status.
Release
【▲】and【▼】
buttons
system will display
P*
and
**
alternately.
P*
is an indication of system operation
parameters;〖**is the interior data value ofP*.
When displayingP*〗,press【▼】,indication of system operation increasespress【▲】,indication decreases.
When displaying
**
〗,
press
【▼】,
data value increases
press
【▲】,
data value decreases.
Release buttons
system displays operation indication and configuring data alternately.
To modify other configuring datum, repeat the operation in item 3, item 4, item 5.
At the moment when system displays P*Simultaneously press 【▲】and【▼】system will save modified datum for
future use. This moment, system displays Pn for 1 second. System operation parameters modification of this time is
completed.
ExampleModify parameter P2 to 16
Simultaneously press 【▲】and【▼】on system control keypad to power on this moment PP will be displayed aglimer,
that means entering modifying status.
Release
【▲】and【▼】
buttons
system will display
P0
and
**
aglimer
Technical File of the EWD-H-XJ4 Intelligent Elevator Load Weighing Device [Users Guide]
Page7 of 15
When displayingP0〗,press【▼】to increasing it toP2〗;
Release button【▼】,system alternately displaysP2and**〗;
When displaying**〗,press【▲】and【▼】to regulate its value as16〗;
Release button
system alternately displays
P2
and
16
〗;
At the moment when system displays
P2
Simultaneously press
【▲】and【▼】
system will save modified datum for
future use. This moment, system displaysPnfor 1 second. System operation parameters modification is completed.
5、Implication of parameter P:
Directions of Parameter P0 [System Operation Mode]
Setting
Explanation
Default Setting
Normal Value
00
Normal Operation
01
00
This value will
be modified in
the course of
autotuning.
01
Sensor installing positioning, system no-load and rated-load autotuning
operation.
02
Specifying system no-load autotuning operation.
03
Specifying system Rated-load autotuning operation.
04
Select 20% rated load”autotuning operation
being convenient for users special
adjustment.
25~99
×0.1mm
For elevator with known “no-load→rated-load”compressing moveable car
platform damping rubber padit may be set manually. The system may be put
into use after system installation positioning. (This adjustment is very
convenient for elevator manufacturers. For more detail, refer to Chapter 10.)
Directions of Parameter P1
Setting
Explanation
Default Setting
User Setting
00
0-Cascade output mode
00
User needn't to modify
Directions of Parameter P2 [Light-load parameter setting]
Setting
Explanation
Default Setting
User Setting
0030
Light-load signal output
05
Technical File of the EWD-H-XJ4 Intelligent Elevator Load Weighing Device [Users Guide]
Page 8 of 15
Directions of Parameter P3 [Half-load parameter setting]
Setting
Explanation
Default Setting
User Setting
P2+160
Half-load signal output
30
Directions of Parameter P4[Heavy-load parameter setting]
Setting
Explanation
Default Setting
User Setting
P3+190
Heavy-load signal output
70
Directions of Parameter P5 [Full-load parameter setting]
Setting
Explanation
Default Setting
User Setting
P4+199
Full-load signal output
90
Directions of Parameter P6 [System overload coefficient]
Setting
Explanation
Default Setting
User Setting
0020
Rated-load+(rated-load ×P6) %, Output overload signal
05
Directions of Parameter P7 [Operation Status setting of Solid state relayJ1]
Setting
Explanation
Default Setting
User Setting
00
No-load dynamic output
00
(No-load Dynamic Close )
Directions of ParameterP8 [Operation Status setting of Solid state relay J2]
Setting
Explanation
Default Setting
User Setting
00
1F
Half-load dynamic output
02(Half- load dynamic close)
Directions of Parameter P9 [Operation Status setting of Solid state relay J3]
Setting
Explanation
Default Setting
User Setting
00
1F
Full-load dynamic output
04(Full-load dynamic open)
11.Directions of Parameter PA [Operation Status setting of Solid state relay J4]
Technical File of the EWD-H-XJ4 Intelligent Elevator Load Weighing Device [Users Guide]
Page9 of 15
Setting
Explanation
Default Setting
User Setting
001F
Over-load dynamic output
0F(Over-load dynamic close)
12.Directions of Parameter D [Displacement-expanding Setting]
Setting
Explanation
Default Setting
User Setting
01
Displacement approach, 10mm effective
01
Note: If the setting value is not specified, the weighing device will not work normally.
During the regular maintenance of the elevator, the self-learning work of the weighing device should be carried out again.
Explanation of Displaying Code:
6、System Normal Operation Code: (“W”is the present effective load)
Display Code
Indication
System
displaysL*
L0
No-load car
Output No-load signal
Output no-load signal
L1
Light-load car
Output Light-load signal
Output Light-load signal
L2
Semi-load car
Output Haff-load signal
Output Hall-load signal
L3
Heavy-load car
Output Heavy-load signal
Output Heavy-load signal
L4
Rated-load car
Output Rated-load signal
Output Rated-load signal
LF
Over-load car
Output Over-load signal
Output Over-load signal
1
Press and hold the [▲] button, if the weighing device displays [4.7], it means that the maximum compression
deformation of "no-load to rated-load" at the bottom of the elevator car is "4.7mm", which can be memorized by the
user for future use;
2
Press and hold the [▼] button weighing device will display the load variable of the current moving car bottom. If
shown, [1.2] indicates that it has been compressed by "1.2mm" since "no load".
For user to savethe code of this elevator
Rated-load compression variable:mm
7、Code for Other Operation and Failures
Display Code
Indication
Solution
Technical File of the EWD-H-XJ4 Intelligent Elevator Load Weighing Device [Users Guide]
Page 10 of 15
Display Code
Indication
Solution
1
YS
System Startup
2
Pc
System Resetting
3
PP
Get into the status of operation parameters modification
4
PL
Self-learning no-load parameter (static display indicates ready state, flashing display indicates
complete detection)
5
PH
Self-learning rated-load parameter (static display indicates ready state, flashing display indicates
complete detection)
6
LL
Installation
and
positioning
Too big Positioning
Move this device closing to the magnet
7
LH
Too small Positioning
Move this device away from the magnet
8
Lo
Accurately Position
9
LP
Interior Auto Correction
10
P*
System Configuration Indication
11
Pn
Saved
12
EA
Saving Failure
Modify the operation parameters
13
EJ
Without this system setting
Check system setting value
14
ED
Car platform deformation deficient
Affirm elevator in the condition of rated load
15
EC
Car platform deformation overflowing
Damping rubber is too softadjust PD
16
EH
Incorrect installation place of the magnet
Check the magnet installation place
17
EL
Incorrect installation place of the magnet
Check the magnet installation placepay special
attention to polarity and distance.
How to do
8、Brief Analysis of Other Conditions:
After installation of this weighing device, weighing signal changes in the course of operation
The elevator load output value is not held after elevator starts, adjust the relative items of the inverter and controller.
After long-term of operation, system no load zeroing point appears larger deviation
May be caused by the reason described in section 3,Chapter 3. Set system Autotuning mode to calibrate again
Technical File of the EWD-H-XJ4 Intelligent Elevator Load Weighing Device [Users Guide]
Page11 of 15
After the elevator weighing is changed from heavy load to light load, heavy load signal is still displayed
The movement of the moveable car platform is blocked, it is not reset after pressing. Solute the relevant mechanic problems.
System output signal doesn’t change linearly along with the change of load
Check the structure of the moveable car platformpay more attention that there should only be one pair of damping rubber or
spring moving relatively to the moveable car platform.
During the system operation, analog output is abnormal or system resetting or speed-regulator cooperation is abnormal
It may be caused by system power source series interference. Select another group of power to supply the system, or to provide
an exterior power of AC/DC 24V/300mA to supply.
9、How to set an elevator with known “no-load→rated load”compression deformation?
For exampleThe max “no-load→rated load”compression deformation of this elevator is 5.8mm.
Operation
Modify“P0=58”and save it. Refer to chapter 5
After system restarting,LPis displayed. Wait untilLL,LoorLH is displayed
When the car is emptyadjust system installation position to make it displayLo〗,fasten it
When
Lo
is displayed
press
▲】and【▼】
ssimultaneously
system begins to autotune no-load operation parameters
AfterPLis display aglimer for 5 second, the whole process of autotuning is finished.
10、How to do Re-Autotune operation for system?
Method 1:Simultaneously press【▲】and【▼】son system control panel to power on. This moment, system aglimmer
displaysPPand P-.Keep 15 secondssystem will displayPn.On that occasionall operation parameters
reset to default settings.
Method 2
Modifying parameter P0=0A or user specified operation code will reset system immediately to default status. But
for users with specified code. The method is mentioned in Chapter 5.
11、How to modify output status of a system after autotuning is finished?
Modify the corresponding controlling parameters of parameter P respectively. The method is mentioned in Chapter4.and 5.
12、How to adopt 20% rated load for rated load autotune?
Modify P0=04. AfterLopositioning and no-loadPLautotuningin the period of system displayingPH〗,load 20% of the
rated load
press
system displaying
L1
means the end of adjustment. This is an auxiliary method when 100% autotuning
can be done.
Technical File of the EWD-H-XJ4 Intelligent Elevator Load Weighing Device [Users Guide]
Page 12 of 15
13、The compression of car damping rubber exceeds the sensor inspection range?
Before autotuning, be assure to select PD”=“02/03”and save it. Then, readjusting the installing position of the
sensor is OK (See parameter PD for more details).
14、On adopting operation of “load increasing,displacement aloofing”method
Before autotuning, be assure to select “PD”= “1*” and save it. Then, readjusting the installing position of the sensor is OK.
System Characteristics
15、Working principle of EWD-H-XJ4”elevator weighing device
With the development of elevator technology, the influence of elevator weighing device on its performance has reached a
point that cannot be ignored. Elevator weighing device of high precision, high reliability, multi-function demand is imminent.
With the continuous development of sensor technology and microcomputer, the high precision Hall sensor is used to detect the
displacement change of elevator car bottom due to the load. At the same time, the single chip microcomputer is used to carry
out scientific calculation and processing, so that the device can realize the function of weighing the elevator car payload..
16、Main property
Working in a contactless and inductive way. No mechanical movement. Solid-state relay outputs. Being
directly installed in the original place of overloading switch. No necessity of changing the mechanism of
elevator car.
The whole system is designed in the waterproof structure with small overall size, easy installation and
adjustment and simple structure.
Wide induction range, high accuracy positioning, intelligent temperature compensation making the range of
operating temperature wider.
The inner core consists of Hall sensor of high accuracy and single-chip microprocessor of high efficiency. All
parameters may be set on the field.
Adopting strong inductive magnet, improving the anti-interference capability of the system to the utmost.
Each set of products undergo a rigorous aging process to ensure reliable work.
(7)System based on mathematical equations for scientific computing, automatic detection error correction
Technical File of the EWD-H-XJ4 Intelligent Elevator Load Weighing Device [Users Guide]
Page13 of 15
On-site adjustment is easy, either by autotuning or by manual displacement setting.
(9)The independent development of the programmable output signal control method can be used for all kinds of
traction elevator with moveable car platform.
17、Technical specifications:
Application
Being applicable to all moveable car platform elevators
with an auto inspection range of
(2.00mm ≤car platform movement≤10.00mm)
manual setting displacement range 2.5
9.9mm
(relate to parameter PD)
Sensitivity
Elevator rated load/200 (With the rated load of 1T, it is 5.0Kg)
System Error
≤1.5%(-20~55℃)
In the whole temperature range≤3.0
Non-Linearity
≤1.0
Output
Mode
Solid-state
Relay
Programmable
universal signal
3/5 channel programmable output modes are: No load, light load,
semi full load, heavy load, rated load, overload (customer may set
the changing range freely).
Each channel can be programmed as dynamic Close or Open
contact.
Contact Capacity:DC/AC 32V/15mA
6
Working
Temperature
-2055℃
7
Relative Humidity
20%99RH
8
Reaction Time
≤0.25 Seconds
9
Power Supply
AC/DC 24(±10%)V150mA
10
Installation Place
Moveable car platform of elevator
11
Overall Size
45×45×90 mm
3
Technical File of the EWD-H-XJ4 Intelligent Elevator Load Weighing Device [Users Guide]
Page 14 of 15
The intension exceeding the limit parameters listed above may result in the abnormality or permanent damage to the system.
Promise
If this system appears any quality problem of product itself in 1 year after delivery, it will be replaced freely
damage of the product seal will not be dealt with
For any requirement of special functions, make it out by mail.
Any system abnormality in adjustment or operation, please contact our company directly.
Others
1.Accessory
Instruction Manual
1 piece
Fixing Screw setφ4*20
2 sets
Inductive magnet [20×20×4mm
3
]
1 piece
2..address book
029-88416613 85565714/8478
7DBlock A, Olympic Building, 14th C
hang An North Road, Xi'an
029-85565714-886
710068
Technical Support:0086-18092639752/0086-18092639750
