EWD-RL-J3 elevator overload device Manual(V2.2)
Declaration
：
In any case, our part is only responsible for the product own quality within the warranty period.
Description
：
1.State Indication
－
Flickering
：
About
“
Once per Second
”；
2.Button Operation － Press：Press and release soon；Hold：Press constantly；
3.Relay － Keep the state of Picking-up in the period of system being .
● Main Features：
1.The system is of the structure of sensor with the domination of loading cell and controller, which
can be installed at the car-side rope hitch；
2.Directly outputting full-load or overload signal depending on the change of elevator car payload
；
3. Simple adjustment, high precision of measurement and quick and easy installation.
●
Technical Specifications
：
⒈
Application Range
Suitable for all traction, hydraulic, strong drive elevator use (load range depends
on sensor range)
⒉
Sensitivity
For the elevator with rated load of 1 ton, it is 5Kg
⒊
System Error
≤1.5％(5～40℃)
⒋
Output Mode
Switching Signal
：
light load and Full-load and overload Dynamic Close and
Dynamic Open contact
⒌
Operation
Temperature
-25
～
55
℃
⒍
Power Source
DC 24V(
±
10%)
，
Operating current for the whole set
≤
100mA
：
Intensity exceeding the above listed parameter limits may cause the system
abnormality or its permanent damage.

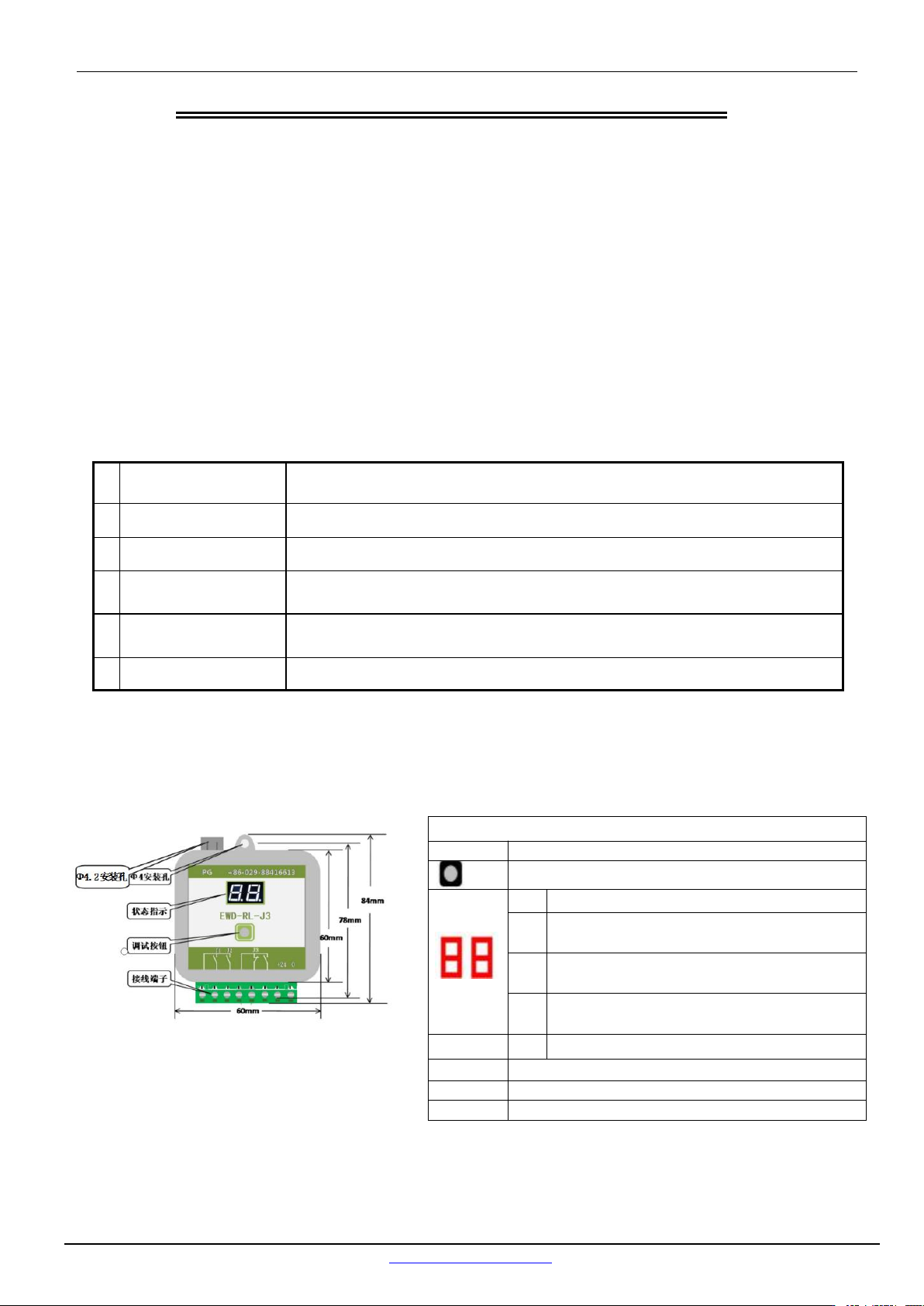

Product Appearance, Installing Method and Relevant Structure
The code description of the normal work of the digital tube
PG
Connect load sensor
Button, use for adjust
Status
ndication
L0
No adjust
J0
Load ＜90%Rated load(J1、J2、J3 relay is
released)
J1
20% load ≤ current load < 80% load (J1
relay suction
J2
80% Load ≤ Current load ≤100%(J2 relay
suction)
J3
Current load > 100% (J3 relay suction)
PJ.1~3
J1 J2 Light load 、Full load output
PJ.4~6
J Over load output
PJ.7~8
System power supply DC24V/100mA
EWD-RL-J3 elevator overload device Manual
XI'AN Excellent Electromechanical Co. Ltd
http://www.xaest.com
：
(029)88416613、85565714、85568478
Add.: 7D ， Block A, Olympic Building, 14th Chang An
North Road, Xi'an, Shaanxi,China
：710061
第7—2页

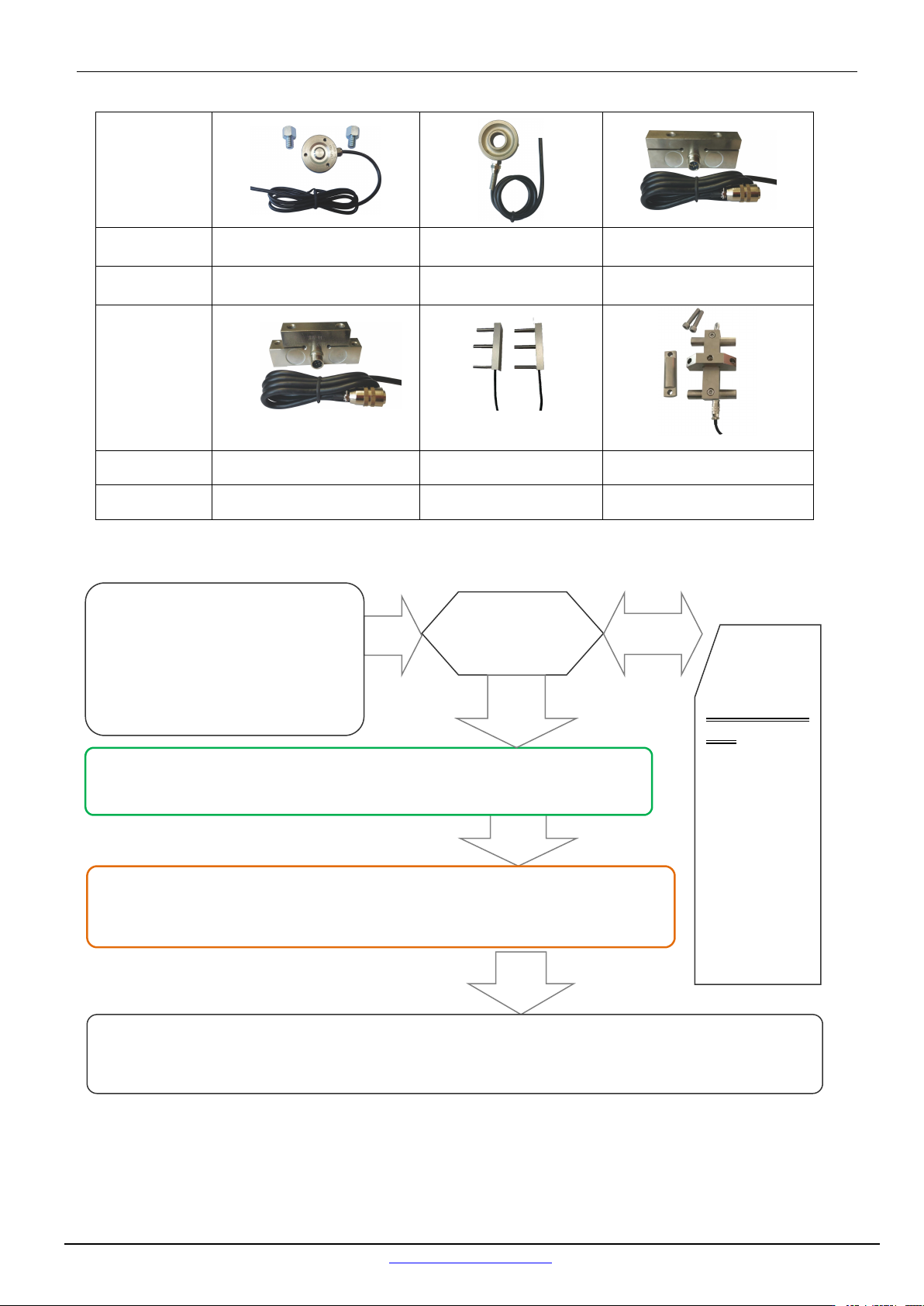

Sensor selection and installation：
System Adjustment：
Yes
Yes
Yes
State Indication of
〖Lo〗
Reset to Default
State
After power on，
press【◎】to turn
on. Release
【◎】
after
〖
PP
〗
indicating for 10
seconds later
display
〖 Pn 〗
system will be
reset to default
state
Press【◎】，display〖Pn〗， show 〖PL〗will flicker for 6s，which means the
end of No-load Autotuning.
No
1. After proper installation of this
device and check of no erro
r，turn on the system.
2. Stop the elevator at the bottom
floor and let the car be of
no load.
Yes
Indicating〖PH〗，Enter "load self learning state" load 100% weight
For example, for a 1T load elevator, load 1000kg
Press【◎】，display〖Pn〗later,show 〖J2〗flickers, which means the end of Rated Load Autotuning
After the system debugging is completed, during normal operation, press and hold [◎],
〖
J1
〗
/ J2
〗
/J3
〗
alternately flashing, while alternately output.
Load sensor
Model
XCL-Y/3411
XCL-YH/5018
XCL-T/A（20)
Dimensions
See photo
See photo
See photo
Load sensor
Model
XCL-T/B（20)
XCL-ZL/P2
XCL-ZL/W
Dimensions
See photo
See photo
See photo
EWD-RL-J3 elevator overload device Manual
XI'AN Excellent Electromechanical Co. Ltd
http://www.xaest.com
：
(029)88416613、85565714、85568478
Add.: 7D ， Block A, Olympic Building, 14th Chang An
North Road, Xi'an, Shaanxi,China
：710061
第7—3页
times the load multiplier to modify the operation: (need to debug a good system
to operate)
Return to normal working condition
1.system Power off
2.press【◎】power-on,show〖PP〗released：(Note：press 【◎】10 Seconds，
over Seconds
system will clear the existing data back to the factory state)
3.During Show〖Pd〗and 〖01〗enter Full load、over load Multiplication mode，
4.During show 〖01〗flicker，press【◎】，Multiplication will increase，until
〖
30
〗
later
，
Will loop back
〖
01
〗
Start to increase again
。
After reaching the
desired multiplier
，
press
【◎】
,keep 2-3 seconds
，
display
〖
Pn
〗
Remember and save the value，Into normal mode of operation.
5.（ For example:For the elevator with load memory learning of 1000kg,
parameter [Pd] is modified to 05, select 5 times, full load 90%x5000kg;
Overload > 100%x5000kg;)
（
Note
：
By default, the parameter [Pd] of weighing device is [01], which means
no multiplication, and [30], which means 30 multiplication. This parameter is
used cautiously
）
Yes
Description of Other Indication States：
Display
Code
Implication
Solution
1
EL
Sensor unpressurized
Check whether sensor cables are properly connected
and grounded
2
YS
System Startup
3
Pd
Control box load multiplication parameter
4
PP
Get into the status of operation parameters modification
5
Lo
Ready for Autotuning Operation
6
PL
Self-learning no-load parameters
Flashing displays indicate memory parameters
7
PH
Self-learning load parameter
The static display indicates the ready state
8
Pn
Memory is complete
Promise
1. If this system appears any quality problem of product itself in 1 year after delivery, it will be
replaced freely
（
damage of the product seal will not be dealt with
）
.
2. Any system abnormality in adjustment or operation, please contact our company directly.
Others
Technical support: 18092639750 18092639752
Packing
List
Controller of EWD-RL-BJ2
Elevator Loading Device
1
Load sensor and accessories
1Set
Screw Sets M4 X 40
2 Sets
System Instruction Manual
1 Copy
2.Address book：
Xi’AN EXCELLENT ELECTROMECHANICAL CO.,LTD
：
(029)88416613 85565174
(029)85568478
：
7D
，
Block A, Olympic Building, 14th Chang
An North Road, Xi'an, Shaanxi,China
EWD-RL-J3 elevator overload device Manual
XI'AN Excellent Electromechanical Co. Ltd
http://www.xaest.com
：
(029)88416613、85565714、85568478
Add.: 7D ， Block A, Olympic Building, 14th Chang An
North Road, Xi'an, Shaanxi,China
：710061
第7—4页
Φ
68
25
10
22
4-
Φ
14
4-M10
Φ
86
Φ
20

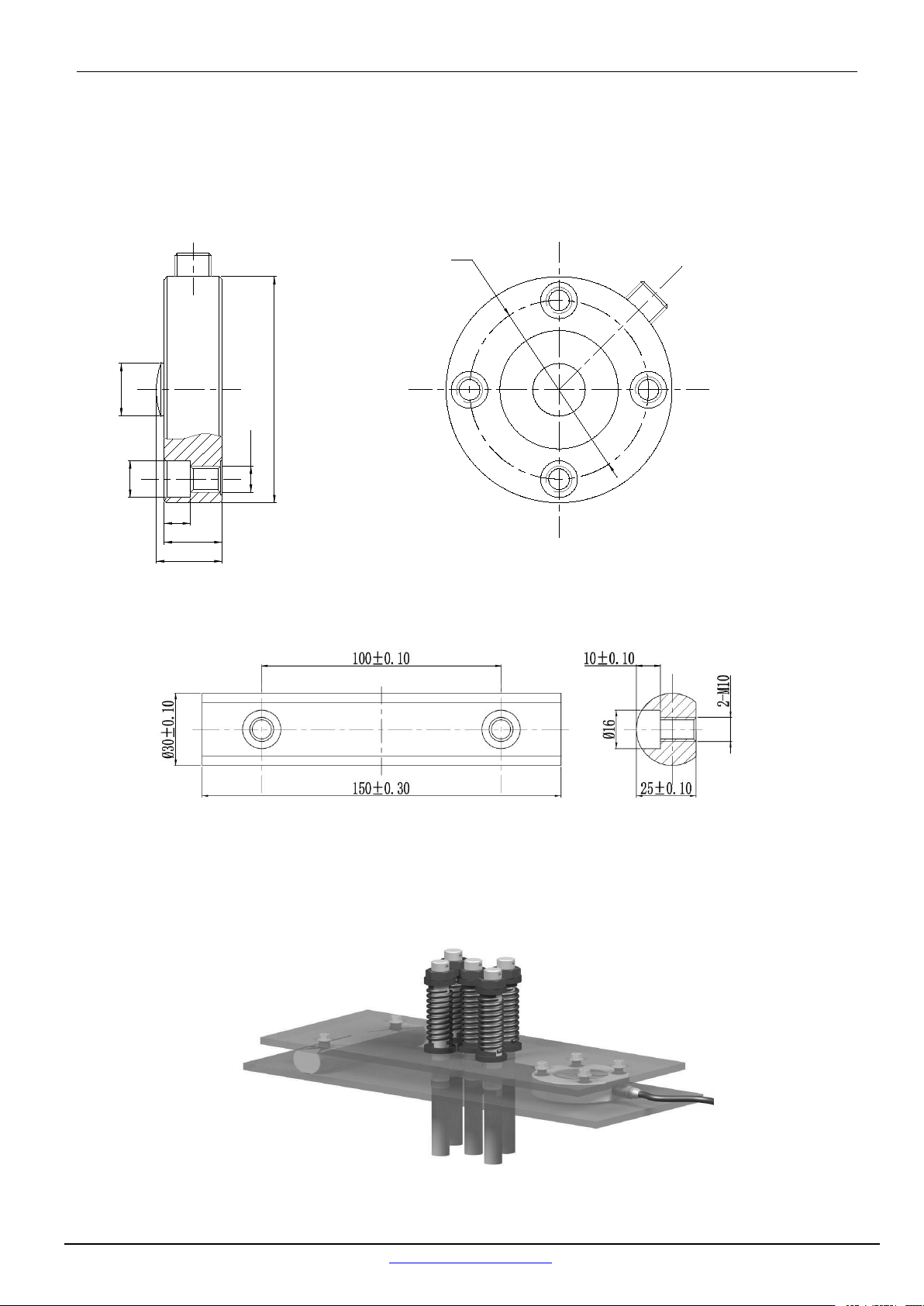

Attched document：
Load sensor dimensions and installation
1. XCL-Y/8625 loading Sensor size and installation method
1.1 size (range:12KN、22KN、30KN、40KN、50KN、70KN)
Bar size chart
1.2 install method
EWD-RL-J3 elevator overload device Manual
XI'AN Excellent Electromechanical Co. Ltd
http://www.xaest.com
：
(029)88416613、85565714、85568478
Add.: 7D ， Block A, Olympic Building, 14th Chang An
North Road, Xi'an, Shaanxi,China
：710061
第7—5页
Range
Size
KN A B
20
50
216 192
260 238
Range
Size
KN
10
15
20
30
A B C
Thread hole depth
H
50
70
100
150
25 8 12.5
Through-hole
41
25 8 12.5
Through-hole
41
25
8
12.5
Through-hole
41
35 10 12.5
Through-hole
48
35 10 12.5
Through-hole
48
35 8 17 1860
35 8 1760
35 8 2170
18
18

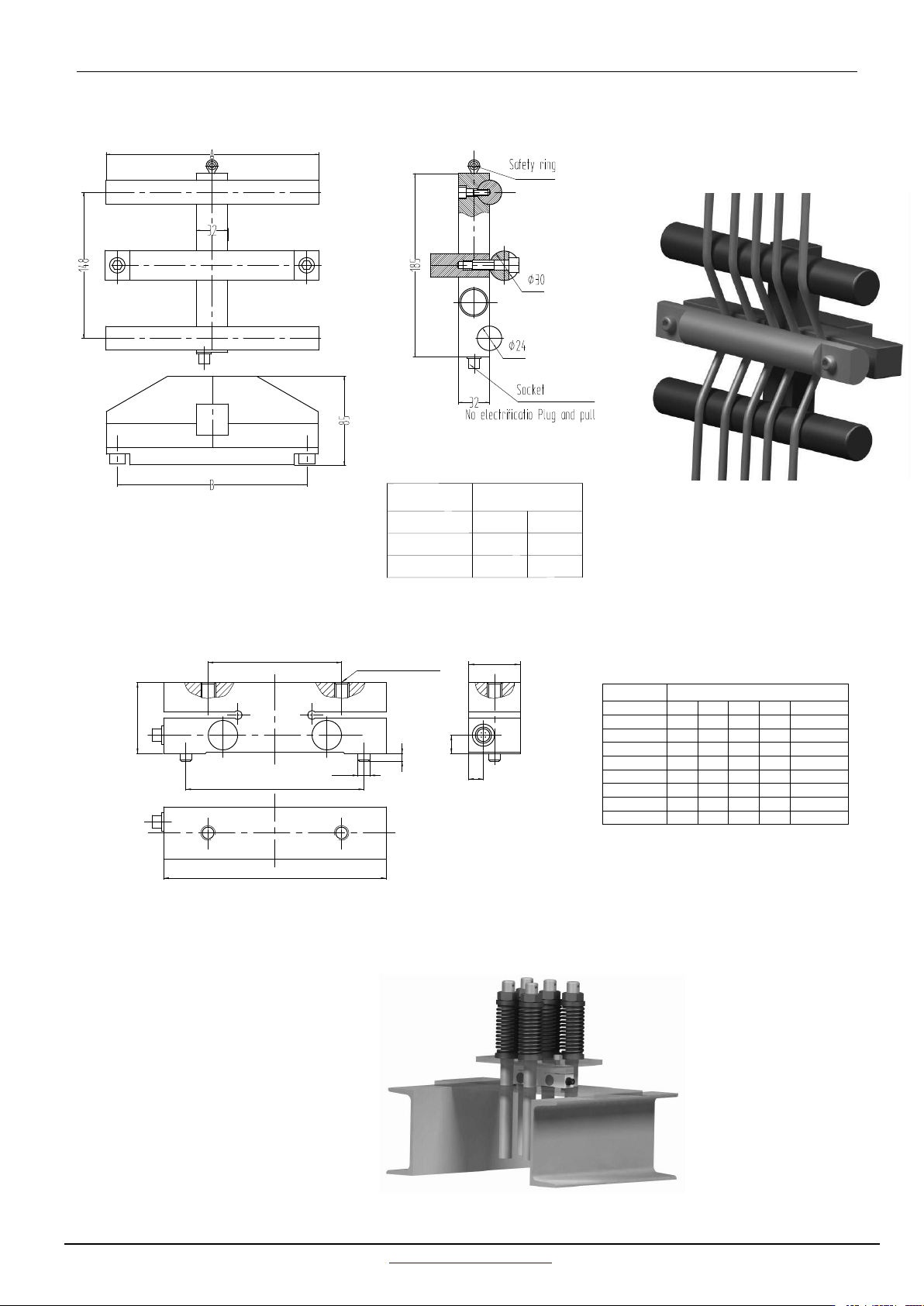

2. XCL-ZL/W Standard character “
王
” tension sensor size and installation method
2.1 Size of load sensor 2.2 install method
3.XCL-T/A Standard character “
一
” load sensor size and installation method
3.1 load sensor size
3.2 install method
150
C
90
H
B
120
5
2-
Φ
8
2-M10(螺纹孔深度）
A
EWD-RL-J3 elevator overload device Manual
XI'AN Excellent Electromechanical Co. Ltd
http://www.xaest.com
：
(029)88416613、85565714、85568478
Add.: 7D ， Block A, Olympic Building, 14th Chang An
North Road, Xi'an, Shaanxi,China
：710061
第7—6页
Range
Size
KN A B
Thread hole depth
H
30
50
70
100
150
10 12.5
Through-hole
48
10 12.5
Through-hole
48
8
17
1860
8 17 1860
8 17 1870

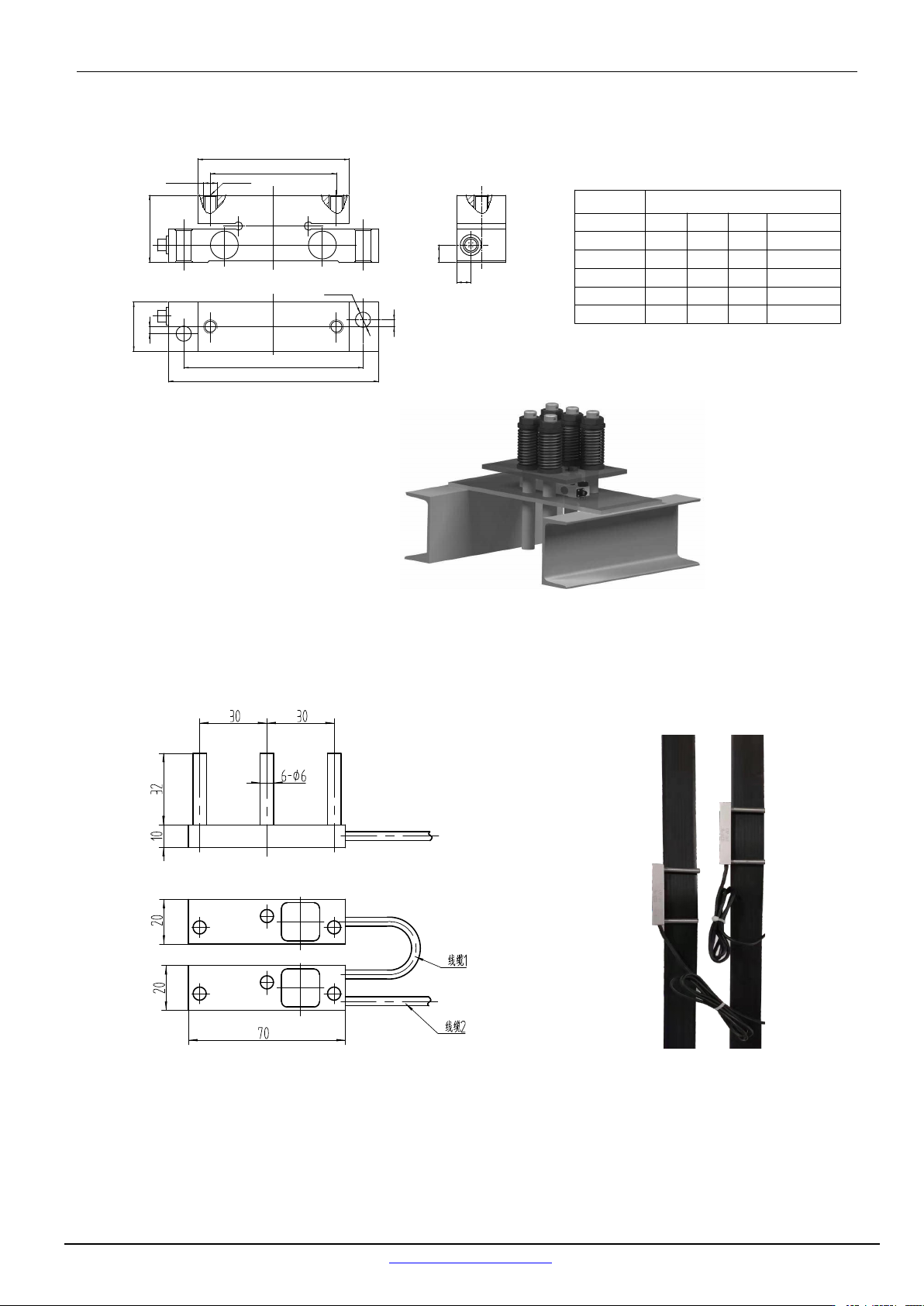

4.XCL-T/B Standard character “
一
” load sensor size and installation method
4.1 load sensor size
4.2 install method
5.XCL-ZL/P2 load sensor dimensions and installation method：
5.1 size（range ：5KN 、8KN） 5.2 install method
150
128
108
90
H
35
5
2-
Φ
11
A
B
2-M10
5
螺纹孔深度
EWD-RL-J3 elevator overload device Manual
XI'AN Excellent Electromechanical Co. Ltd
http://www.xaest.com
：
(029)88416613、85565714、85568478
Add.: 7D ， Block A, Olympic Building, 14th Chang An
North Road, Xi'an, Shaanxi,China
：710061
第7—7页

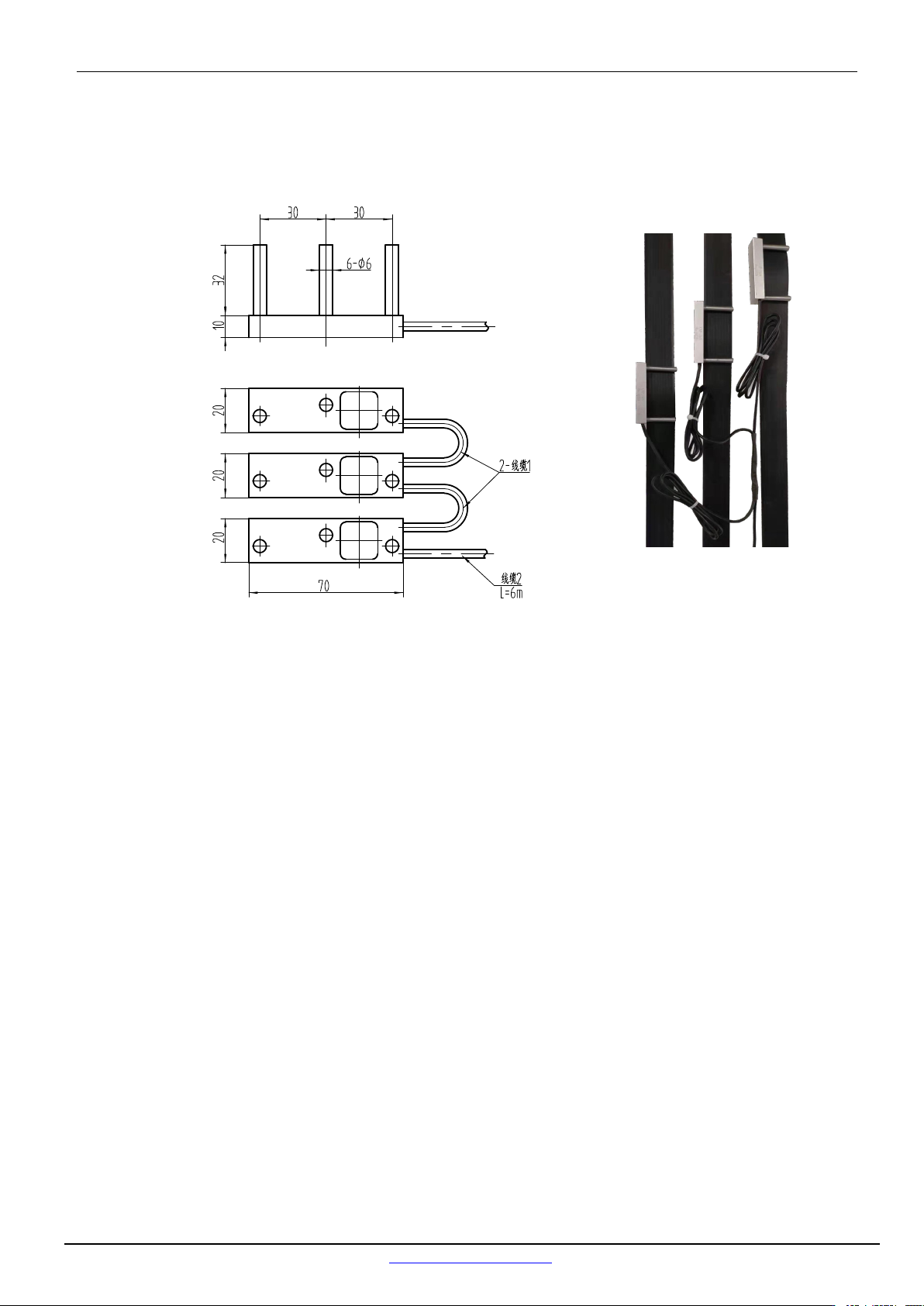

6.XCL-ZL/P3 load sensor dimensions and installation method：
6
.1 size（range ：5KN 、8KN） 6
.2 install method
